ASP.NET Hosting - ASPHostPortal.com :: Easy to Design Pie Chart and Donut Chart in ASP.NET

clock September 28, 2015 12:40 by author Kenny

Easy to Design Pie Chart and Donut Chart in ASP.NET

D3.js stands for Data-Driven Document. It is a JavaScript library using which we can manipulate documents based on data. The data can be fetched using multiple ways like Web Services, WCF Services, REST APIs or the relatively new Microsoft ASP.NET Web API amongst many others. Using D3, you can bind the data to the Document Object Model (DOM) and present that data with rich visualizations. D3 internally makes use of CSS, HTML and SVG capabilities to make your data presentable. It is powerful, fast and supports large datasets and dynamic behaviors for interactions and powerful and smooth animations.

D3.js provides easy and declarative selections of DOM nodes using W3C Selector APIs. D3 Selector APIs provides number of methods to manipulate nodes. For example –

  • Setting attributes and applying rich styles
  • Registering Event Listeners
  • You can add, remove and sort DOM nodes
  • You can change the HTML or the text contents of HTML elements
  • You can also have a direct selection/access to the DOM as each selection is an array of nodes

Likewise, we have various features of D3.js selectors which we can use to present data to our DOM nodes.

A simple selector example is the following:

var bodySelection = d3.select('body').style('background-color', 'blue');

In the above example, we are selecting body and changing its background color to blue. Another example would be as follows:

var divSelection = d3.selectAll('div').style('background-color', 'yellow');

In the above example, we are selecting all divs and changing its background color to yellow. If you are familiar with jQuery, the syntax looks similar to jQuery selectors or HTML5 Selectors.

D3 allows us to bind the data to the DOM elements and their attributes using a Data method which takes an array. For example:

d3.selectAll("div")
  .data([200,300,400,100])
  .style("height", function (data) { return data + "px"; });

In the above example, we are selecting all the div’s on the page and based on the index, the first value of an array will be passed to first div, second value to second div and so on.

In D3, you can also make use of Enter and Exit selector methods to create new nodes for incoming data, and remove outing nodes that are no longer used.

You can also apply transitions to nodes using D3. For example –

var area = d3.select('body')
            .append('svg')
            .attr('width', 500)
            .attr('height', 500);

var circle = area.append('rect')
                 .attr('width', 100)
                 .attr('height', 100)
                 .attr('fill', 'red');

circle.transition()
      .duration(2000)
      .delay(2000)
      .attr('width', 400)
      .each('start', function () {
            d3.select(this).attr('fill', 'green');})
      .transition()
      .duration(2000)
      .attr('height', 400)
      .transition()
      .duration(2000)
      .attr('width', 50)
      .transition()
      .duration(2000)
      .attr('height', 50)
      .each('end', function () {
            d3.select(this).attr('fill', 'blue'); });

In the above example, we are drawing a Rectangle and applying the transition to the same. Likewise, we can make use of various features of D3.js to present our data using rich visualizations.

A Quick overview of ASP.NET Web API

REST(REpresentational State Transfer) has emerged as the prominent way to create web services. By using REST we can build loose coupled services with data available on the web over HTTP protocol.

ASP.NET Web API is a platform for building RESTful applications. ASP.NET Web API is a framework using which we can build HTTP Services which can be called from a broad range of clients, browsers and mobile devices. ASP.NET Web API is the defacto standard of creating web services and replaces WCF.

When we think about exposing data on the web, we usually talk about four common operations which we use on a daily basis in our apps – CREATE, RETRIVE, UPDATE, DELETE.

We call these operations as CRUD operations. REST provides 4 basic HTTP verbs which we can map to our CRUD operations as described here - POST – CREATE, GET – RETRIVE, PUT – UPDATE, DELETE – DELETE.

By using REST, if you can connect to the web, any application can consume your data. When the data is pulled or pushed by using REST, the data is always serialized into or de-serialized from JSON or XML.

Setting up the application and ASP.NET Web API

To start designing the Pie chart and Donut chart, use the following tools and technologies:

  • Microsoft Visual Studio 2013 (Express or Professional)
  • Microsoft SQL Server 2012 (Express or Developer)
  • jQuery
  • D3.js
  • ASP.NET WEB API

Let’s first design the table where we can add our data. To design the table, open SQL Server Management Studio and write the following script:

CREATE TABLE [dbo].[CityPopulationTable](
    [CityID] [int] IDENTITY PRIMARY KEY,
    [CityName] [nvarchar](30) NULL,
    [Population] [int] NULL
)

Create an ASP.NET Web application by choosing Web Forms template. Then add the Entity Framework, jQuery and D3.js libraries into our web application using NuGet.

Once you add these libraries, right click on the Models folder in our Web application under Solution Explorer, and click on Add New Item. Choose Data  > ADO.NET Entity Data Model.

Using Entity Data Model Wizard, connect to our database and choose CityPopulationTable.

It’s time to implement the ASP.NET Web API into our project. Right click the web application and add a new folder with the name Controllers.

After adding the Web API, open Global.asax file and import two namespaces as shown here:

using System.Web.Http;
using System.Web.Routing;

Also add the following code to the Application_Start method –

GlobalConfiguration.Configure(WebApiConfig.Register);

The above line registers the Web API route in our web application. Now under App_Start folder, you will find WebApiConfig.cs file. Open this file and write the following code:

public static void Register(HttpConfiguration config)
{
    config.MapHttpAttributeRoutes();

    config.Routes.MapHttpRoute(
        name: "DefaultApi",
        routeTemplate: "api/{controller}/{id}",
        defaults: new { id = RouteParameter.Optional }
    );
    var json = config.Formatters.JsonFormatter;
    json.SerializerSettings.PreserveReferencesHandling = Newtonsoft.Json.PreserveReferencesHandling.Objects;
    json.SerializerSettings.ContractResolver = new CamelCasePropertyNamesContractResolver();
    config.Formatters.Remove(config.Formatters.XmlFormatter);
}

In the above code, we are configuring Web API to make use of JSON formatter with camel casing, as most of the JavaScript developer will expect JSON output in Camel casing.

Now modify the Get method of our Web API controller as shown here:

public class PieChartController : ApiController
{
    NorthwindEntities dataContext = new NorthwindEntities();
    // GET api/piechart
    public IEnumerable<CityPopulationTable> Get()
    {
        return dataContext.CityPopulationTables.ToList();
    }
}

In the above code, we have created an object of our Entity Data model which will give access to the tables. Then we are returning an IEnumerable of our object CityPopulationTables.

Let us design our Pie chart and Donut chart using the Web API data shown in above:

Creating D3 Charts

Add a HTML page with the name ‘CityPolulationPieChart.html’. Once you add the page, we will reference the jQuery and D3.js file in the page:

<!DOCTYPE html>
<html lang="en">
<head>
    <title>Pie Chart Example</title>
    <script src="Scripts/jquery-1.10.2.js"></script>
    <script src="Scripts/d3.js"></script>
</head>

We will make use of jQuery AJAX function to fetch the data from our Web API and display it in a Pie and Donut chart. Let’s add a DOM ready function into our <body> tag. In this function, we will first declare two arrays. First array will hold the data for our chart and the second array will hold the colors which we will use for our chart:

$(function () {
            var chartData = [];
            var colors = [];
});

In the next step, we will fetch the data from our Web API using jQuery $.ajax function. Add this code after our array declaration:

$.ajax({
        type: "GET",
        url: "api/PieChart",
        contentType: "application/json; charset=utf-8",
        dataType: "json",
        success: function (result) {
            $.each(result, function (i,j) {
                chartData.push(j.population);
                var currentColor = '#' + Math.floor(Math.random() * j.population+5566656).toString(16);
                colors.push(currentColor);
            });
            console.log(chartData);}
        error: function (msg) {
            $("#result").text(msg);
        }
});

Note: Although I have used success and error here for devs using an older version of jQuery, these methods have been deprecated from jQuery 1.8. You should replace them with .done() and fail().

In the above code, we are using a GET request with the Web API URL and the type of data set to JSON. On successful completion of the request, we are running a loop using $.each() which will push the fetched data into our chartData array. We are also generating colors and adding them into our colors array.

Now it’s time to use the D3 selector. We will use D3 selector to select the body and will append the SVG element to the same by setting its height and width. Add this code after console.log function. The code is shown below –

var radius = 300;
var colorScale = d3.scale.ordinal().range(colors);

var area = d3.select('body').append('svg')
             .attr('width', 1500)
             .attr('height', 1500);

Also note that we are using the scale function of D3 which allows us to set the ordinal scale with the range to set the scale’s output range. We have also added a variable called radius which is set to 300.

The next step is to group the elements and draw an arc into our SVG as shown in the following code:

var pieGroup = area.append('g').attr('transform', 'translate(300, 300)');
var arc = d3.svg.arc()
                .innerRadius(0)
                .outerRadius(radius);

In the above code, we are using radius variable as the outer radius and fixing the inner radius to 0. As the next step, use a pie layout available under D3. Then pass the chart data and append it to our group ‘g’. The code is shown below –

var pie = d3.layout.pie()
       .value(function (data) { return data; })
var arcs = pieGroup.selectAll('.arc')
       .data(pie(chartData))
       .enter()
       .append('g')
       .attr('class', 'arc');

Also observe, we are using D3 selector to select arc class added at the end, which will select all the elements which has a class arc. In the last step,  append the path and fill the color from our array. We will also display the population data as text to our pie chart. The code is shown below –

arcs.append('path')
    .attr('d', arc)
    .attr('fill', function (d) { return colorScale(d.data); });

arcs.append('text')
    .attr('transform', function (data) { return 'translate(' + arc.centroid(data) + ')'; })
    .attr('text-anchor', 'middle')
    .attr('font-size', '1em')
    .text(function (data) { return data.data; });

Donut Chart

Designing a Donut chart is very simple. Just change the inner radius to something higher than zero. I am making it 200. The code is as shown here:

var arc = d3.svg.arc()
        .innerRadius(200)
        .outerRadius(radius);

Best ASP.NET 4.6 Hosting Recommendation

ASPHostPortal.com provides its customers with Plesk Panel, one of the most popular and stable control panels for Windows hosting, as free. You could also see the latest .NET framework, a crazy amount of functionality as well as Large disk space, bandwidth, MSSQL databases and more. All those give people the convenience to build up a powerful site in Windows server. ASPHostPortal.com offers ASP.NET hosting starts from $1/month only. They also guarantees 30 days money back and guarantee 99.9% uptime. If you need a reliable affordable ASP.NET Hosting, ASPHostPortal.com should be your best choice.



ASP.NET Hosting - ASPHostPortal.com :: SQL Split Function to Split an Input String

clock September 28, 2015 06:02 by author Dan

Today, we will explain about SQL Split Function to Split an Input String. Generally when posting an article in a blog, we have to define tags (Like  C#.NET, AJAX, ASP.NET,HTML) upon the article. We usually take these tags in a TextBox with separated them by comma(,). To insert these into database we have two ways to do.

First Method using C# :

Using C# you can split the TextBox items and use a for loop to insert into the database. Code is as follow.

string []tags = txtTags.Text.<span class="IL_AD" id="IL_AD10">Trim</span>().Split(',');

/* With for loop */
for (int i=0;i<tags.Count ;i++)
{
 /* perform db query with tags[i].ToSting();
}

/* with foreach */
foreach (string i in tags)
{
  /* perform db query with i.ToSting();
}

Second SQL Method :

Here in the SQL we pass the whole items of TextBox into SQL function to split it and then insert these into specific table. Lets see how to do this.

CREATE FUNCTION SplitText
(
      @Input NVARCHAR(MAX),
      @Character CHAR(1)
)
RETURNS @Output TABLE (
      Item NVARCHAR(1000)
)
AS
BEGIN
      DECLARE @StartIndex INT, @EndIndex INT

      SET @StartIndex = 1
      IF SUBSTRING(@Input, LEN(@Input) - 1, LEN(@Input)) <> @Character
      BEGIN
            SET @Input = @Input + @Character
      END

      WHILE CHARINDEX(@Character, @Input) > 0
      BEGIN
            SET @EndIndex = CHARINDEX(@Character, @Input)

            INSERT INTO @Output(Item)
            <span class="IL_AD" id="IL_AD12">SELECT</span> SUBSTRING(@Input, @StartIndex, @EndIndex - 1)

            SET @Input = SUBSTRING(@Input, @EndIndex + 1, LEN(@Input))
      END

      RETURN
END
GO

-- Create a temporary table to insert tags
create #tblTemp
(
Id identity (1,1),
tag nvarchar(50)
)

-- Inserting into tmpTable
insert into #tblTemp (temp) values
SELECT Item FROM dbo.SplitText('ASP.NET,C#.NET,ADO.NET,JavaScript', ',')
-- Seperated by Comma(,). Place any thing according to you.


Execute your SQL batch query to inserting the tags into table.

Best ASP.NET 4.6 Hosting Recommendation

ASPHostPortal.com provides its customers with Plesk Panel, one of the most popular and stable control panels for Windows hosting, as free. You could also see the latest .NET framework, a crazy amount of functionality as well as Large disk space, bandwidth, MSSQL databases and more. All those give people the convenience to build up a powerful site in Windows server. ASPHostPortal.com offers ASP.NET hosting starts from $1/month only. They also guarantees 30 days money back and guarantee 99.9% uptime. If you need a reliable affordable ASP.NET Hosting, ASPHostPortal.com should be your best choice.



ASPHostPortal.com Announces Moodle 2.9.1 Hosting Solution

clock September 22, 2015 08:43 by author Dan

Choosing a Moodle hosting company can be a tedious process because of the large numbers of number of hosting companies on the market, considerations to make and options to choose from. Going through all of them to check is a near impossible task. But ASPHostPortal.com is Moodle hosting provider that must be in your consideration. We offer Moodle 2.9.1 hosting with excellent service, faster and stable network.

Moodle is the open source platform that lets you build the perfect education solution for your needs. The Moodle learning platform is based on strong pedagogical principles, providing a private learning space for you to design online courses with flexible content and collaborative activities so your students are constantly experiencing feedback. Moodle platform has been used worldwide by millions of users from vast corporations in village classrooms with all shapes, sizes and flavours in between. They were empowered learning everywhere.

Moodle is a modular system based on plugins, which are like Lego blocks that you put together to build whatever you want. There are plugins for different kinds of content, and plugins for all kinds of collaborative activities, which is where Moodle really shines. As an example their Workshop plugin manages a full peer assessment process, so you can get hundreds of students accurately grading each other’s assignment (that can save you a lot of time!). Add some tracking and reports and the ability to add more plugins from the community or even ones you write yourself, and you can build some pretty amazing education environments.

ASPHostPortal.com provides Premium Moodle 2.9.1 Hosting on high performance servers and high-speed internet connection in the world. Every server is equipped with at least 2x Intel Xeon Quad-Core processors and massive amounts of memory. We are using SSD's for storage, which provides much higher performance in terms of I/O and data transfer speed. The servers are connected to the network using multiple 1Gbps ports (bond network). So your Moodle education environment won’t be down and always up at the high rate speed connection. To learn more about their Moodle 2.9.1 Hosting, please visit http://asphostportal.com/Moodle-2-9-1-Hosting

About ASPHostPortal.com :
ASPHostPortal.com is The Best, Cheap and Recommended ASP.NET & Linux Hosting. ASPHostPortal.com has ability to support the latest Microsoft, ASP.NET, and Linux technology, such as: such as: WebMatrix, WebDeploy, Visual Studio 2015, .NET 5/ASP.NET 4.5.2, ASP.NET MVC 6.0/5.2, Silverlight 6 and Visual Studio Lightswitch, Latest MySql version, Latest PHPMyAdmin, Support PHP 5.x, etc. Their service include shared hosting, reseller hosting, and sharepoint hosting, with speciality in ASP.NET, SQL Server, and Linux solutions. Protection, trustworthiness, and performance are on the core of hosting operations to make certain every website and software hosted is so secured and performs at the best possible level.



ASP.NET Hosting - ASPHostPortal.com :: Solving ASP.NET DLL HELL problem

clock September 21, 2015 06:26 by author Dan

In short, the dll hell problem is solved in .NET by signing the shared assemblies with strong name. Please follow this article, to understand the process of strong naming an assembly.

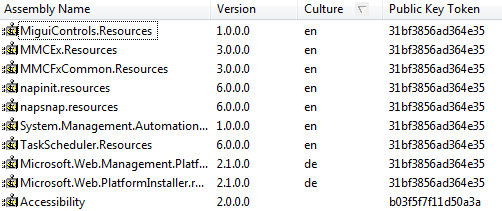

In dot net all the shared assemblies are usually in the GAC. GAC stands for Global Assembly Cache. The path for GAC is C:\[OperatingSystemDirectory]\assembly. For example on my computer the path is C:\WINDOWS\assembly. The image below shows the shared assemblies in the GAC.

Only strong named assemblies can be copied into GAC. Strong named assemblies in .NET has 4 pieces in its name as listed below.
1. Simple Textual Name
2. Version Number
3. Culture
4. Public Key Token

All these four pieces put together, is called as the fully qualified name of the assembly. In the GAC image above Accessibility assembly has a version of 2.0.0.0.

Now consider the example below:
1. I have 2 applications, Application - A1 and Application - A2 which relies on the shared assembly Accessibility.dll (Version 2.0.0.0) as shown in the image below.

2. Now, I have a latest version of Application - A2 available on the internet.
3. I download the latest version of A2 and install it on my machine.
4. This new installation copies a newer version of Accessibility.dll into the GAC with version 3.0.0.0.
5. So, in the GAC we now have 2 versions of Accessibility.dll.
6. Application - A1 continues to use Accessibility.dll (version 2.0.0.0) and Application - A2 uses Accessibility.dll (version 3.0.0.0)
7. So, now the assemblies are able to reside side by side in the GAC. For this reason dot net assemblies are also said to be supporting side by side execution.

Best ASP.NET 4.6 Hosting Recommendation

ASPHostPortal.com provides its customers with Plesk Panel, one of the most popular and stable control panels for Windows hosting, as free. You could also see the latest .NET framework, a crazy amount of functionality as well as Large disk space, bandwidth, MSSQL databases and more. All those give people the convenience to build up a powerful site in Windows server. ASPHostPortal.com offers ASP.NET hosting starts from $1/month only. They also guarantees 30 days money back and guarantee 99.9% uptime. If you need a reliable affordable ASP.NET Hosting, ASPHostPortal.com should be your best choice.



ASPHostPortal.com Announces WordPress 4.3 Hosting Solution

clock September 15, 2015 08:59 by author Dan

Although WordPress is free and usually you can use it as a separate individual without any problem, for any business website you need a web hosting and your own domain to make a business out of your blog or business website. Using open source WordPress with your own domain having a unique identity makes it profitable brand. Purchasing a domain name is easy, but you have to consider certain factors while choosing a hosting provider for WordPress websites. ASPHostPortal.com is reliable and powerful WordPress hosting provider for you. Today, they offer WordPress 4.3 hosting with excellent service and complete WordPress package.

WordPress is a publishing platform used for building websites and blogs. It allows for a highly customizable user interface. WordPress powers millions of websites in worldwide, and many big brands use WordPress: CNN, PlayStation, New York Times Blogs, People Magazine, and even Ford- they all use WordPress. Pretty impressive list of users, if it’s good enough for the big boys, it’s good enough for your site.

A great thing about WordPress is, it's completely open source which means that the source code used to run WordPress is available to the general public. This means that anyone on the planet can modify the code if necessary and customize WordPress even further to be what they need. Often, this isn't necessary, but it also means that some plugins and themes (templates) created for the platform are also open source. Imagine a world-wide community working together to add more features and functionality to WordPress, you're not limited to only being able to use specific employees or developers to produce customizations, which means it's a powerful CMS system ready to do what you need it to, it's flexible, and easy to customize.

ASPHostPortal.com is a web hosting provider dedicated to providing high quality web hosting at an affordable price. They care for the clients, ensuring each and every client is more than just satisfied day in and day out. They only use the best hardware, super fast network, covered by 24/7 Support Team. They have locations in 8 world class data centers, located USA, Europe, Asia and Australia. Each of locations will provide with amazing performance. To learn more about their WordPress 4.3 Hosting, please visit http://asphostportal.com/WordPress-4-3-Hosting

About ASPHostPortal.com :

ASPHostPortal.com is The Best, Cheap and Recommended ASP.NET & Linux Hosting. ASPHostPortal.com has ability to support the latest Microsoft, ASP.NET, and Linux technology, such as: such as: WebMatrix, WebDeploy, Visual Studio 2015, .NET 5/ASP.NET 4.5.2, ASP.NET MVC 6.0/5.2, Silverlight 6 and Visual Studio Lightswitch, Latest MySql version, Latest PHPMyAdmin, Support PHP 5.x, etc. Their service include shared hosting, reseller hosting, and sharepoint hosting, with speciality in ASP.NET, SQL Server, and Linux solutions. Protection, trustworthiness, and performance are on the core of hosting operations to make certain every website and software hosted is so secured and performs at the best possible level.



ASP.NET Hosting - ASPHostPortal.com :: Easy Steps to Make 2 DateTime objects difference in milliseconds

clock September 11, 2015 06:43 by author Dan

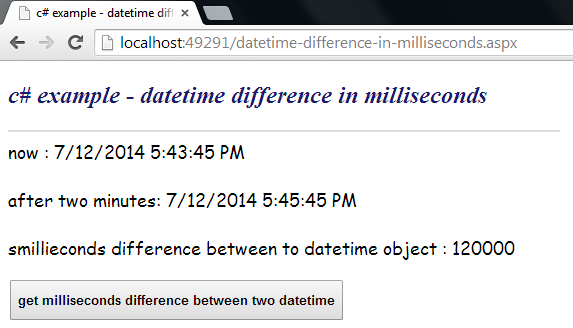

DateTime difference in Milliseconds

The following asp.net c# example source code demonstrate us how can we get difference in milliseconds between two datetime objects. in this source code, we created a datetime type variable by DateTime.Now property that holds a value that represent the current system date and time. now we initialize a new datatime variable with a value that is two minutes greater than previous datetime variable.

after initializing two datetime variables, we create a timespan object by subtract two datetime object. at last we convert the timespan object into milliseconds. the converted milliseconds is the difference between two datetime objects.

DateTime.Now property gets a datetime object that represent current date and time on web server. DateTime.Subtract() method subtract two datetime objects and return a timespan object. TimeSpan represents a time interval.

datetime-difference-in-milliseconds.aspx

<%@ Page Language="C#" AutoEventWireup="true"%>

<!DOCTYPE html>
<script runat="server">
    protected void Button1_Click(object sender, System.EventArgs e)
    {
        //initialize a datetime variable with current datetime
        DateTime now = DateTime.Now;

        Label1.Text = "now : " + now.ToString();

        //add 2 minutes to current time
        DateTime dateAfter2Minutes = now.AddMinutes(2);

        TimeSpan ts = dateAfter2Minutes - now;
        //total milliseconds difference between two datetime object
        int milliseconds = (int)ts.TotalMilliseconds;

        Label1.Text += "<br ><br />after two minutes: ";
        Label1.Text += dateAfter2Minutes.ToString();

        Label1.Text += "<br ><br />smillieconds difference between to datetime object : ";
        Label1.Text += milliseconds;
    }
</script>

<html xmlns="http://www.w3.org/1999/xhtml">
<head id="Head1" runat="server">
    <title>c# example - datetime difference in milliseconds</title>
</head>
<body>
    <form id="form1" runat="server">
    <div>
        <h2 style="color:MidnightBlue; font-style:italic;">
            c# example - datetime difference in milliseconds
        </h2>
        <hr width="550" align="left" color="Gainsboro" />
        <asp:Label
            ID="Label1"
            runat="server"
            Font-Size="Large"
            Font-Names="Comic Sans MS"
            >
        </asp:Label>
        <br /><br />
        <asp:Button
            ID="Button1"
            runat="server"
            Text="get milliseconds difference between two datetime"
            OnClick="Button1_Click"
            Height="40"
            Font-Bold="true"
            />
    </div>
    </form>
</body>
</html>

the above image describe this example code better. this output screenshot display that at first line we created a DateTime variable. second line we created another datetime object by adding two minutes with first datetime object. final line shows the difference of two datetime objects in milliseconds. one second equal to one thousand milliseconds.

Best ASP.NET 4.6 Hosting Recommendation

ASPHostPortal.com provides its customers with Plesk Panel, one of the most popular and stable control panels for Windows hosting, as free. You could also see the latest .NET framework, a crazy amount of functionality as well as Large disk space, bandwidth, MSSQL databases and more. All those give people the convenience to build up a powerful site in Windows server. ASPHostPortal.com offers ASP.NET hosting starts from $1/month only. They also guarantees 30 days money back and guarantee 99.9% uptime. If you need a reliable affordable ASP.NET Hosting, ASPHostPortal.com should be your best choice.



ASP.NET Hosting - ASPHostPortal.com :: Create DropDown and MultiselectDropDown Controls for ASP.NET

clock September 7, 2015 06:32 by author Dan

Description

This article discusses about two user controls written in ASP.NET. Working on a project recently, I needed to develop a custom DropDown control with multiselect options in the form of CheckBox. I searched around for something simple, yet useful for my needs, and I wasn't able to find anything, so I developed my own control. Later, I reused the code to create a regular DropDown control (no multiselect checkbox options). The two controls can be merged into one, but I might do that at a later stage. On to the controls.

DropDown

This control can be bound to a IListSource to fetch data to be populated, in addition to the regular Items collection that can be populated from the asp. Here are a few examples of how this control can be used in ASPX.

<%@ Register Src="Controls/DropDown.ascx" TagName="DropDown" TagPrefix="thp" %>

<thp:DropDown ID="DropDown1" runat="server" Width="200">
     <Items>
          <asp:ListItem Text="Some text" Value="0" Selected="True" />
          <asp:ListItem Text="Another option" Value="1" />
     </Items>
</thp:DropDown>

<thp:DropDown ID="DropDown2" runat="server" Width="200" DataSourceID="DataSource1"
            DataTextField="Name" DataValueField="Id" />

<thp:DropDown ID="DropDown3" runat="server" Width="200"
 OnNeedDataSource="DropDown3_NeedDataSource"
         DataTextField="Name" DataValueField="Id" OnClientChange="onDropDownChange" />

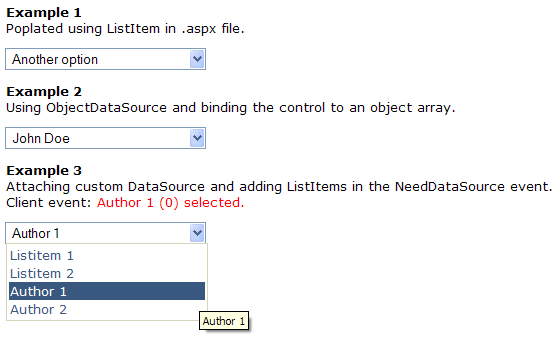

Here's a screenshot of what the above code would render:

Both controls support the following data events:

  • ItemDataBound - Fired after the object has been bound to an Item. The argument passes both the bound object (DataObject) and theListItem.
  • NeedDataSource - Fired when there's no DataSourceID specified. This event is helpful when you want to manually populate the controls with your data. See the source code provided for specifics on this, you can use either Items collection or create custom list source (or both).

MultiselectDropDown

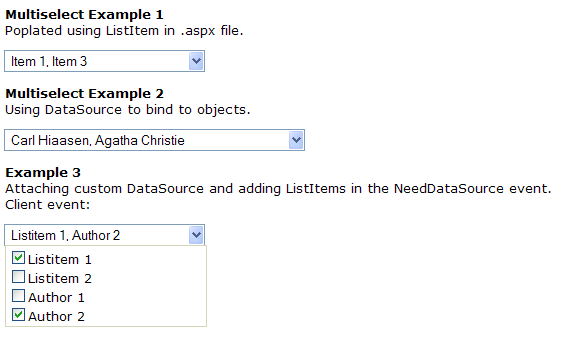

The code and usage is exactly as the DropDown control. Here's a screenshot of all of the above scenarios:

The styling in the attached project uses .skin files in the default theme. You can easily modify these to fit your needs. Everything can be styled.

I hope you find this code useful. I recommend this to anyone that wants to start developing custom controls as it has very important features implemented, such as the IPostBackDataHandler interface to pass data between postbacks in a custom manner. It also features some niceDataBinding examples and how you can use and modify these to perform specific tasks.

Best ASP.NET 4.6 Hosting Recommendation

ASPHostPortal.com provides its customers with Plesk Panel, one of the most popular and stable control panels for Windows hosting, as free. You could also see the latest .NET framework, a crazy amount of functionality as well as Large disk space, bandwidth, MSSQL databases and more. All those give people the convenience to build up a powerful site in Windows server. ASPHostPortal.com offers ASP.NET MVC hosting starts from $1/month only. They also guarantees 30 days money back and guarantee 99.9% uptime. If you need a reliable affordable ASP.NET Hosting, ASPHostPortal.com should be your best choice.



Cheap ASP.NET 4.5 Hosting

We’re a company that works differently to most. Value is what we output and help our customers achieve, not how much money we put in the bank. It’s not because we are altruistic. It’s based on an even simpler principle. "Do good things, and good things will come to you".

Success for us is something that is continually experienced, not something that is reached. For us it is all about the experience – more than the journey. Life is a continual experience. We see the Internet as being an incredible amplifier to the experience of life for all of us. It can help humanity come together to explode in knowledge exploration and discussion. It is continual enlightenment of new ideas, experiences, and passions


Author Link




Corporate Address (Location)

ASPHostPortal
170 W 56th Street, Suite 121
New York, NY 10019
United States

Tag cloud

Sign in
